Overview
Power Production
Specification


Direct Drive Wind Technology

EWT turbines use direct drive technology to drive the synchronous generator without using a gearbox. Fewer moving parts means the turbine can reliably increase availability for energy generation. As a direct drive machine, output can be controlled making the turbine suitable for operation in areas with weak grid infrastructure.

Advantages of EWT’s Direct Drive Technology:

• High availability
• Low maintenance requirement
• Quiet operation
• High annual energy production (AEP)
• Impressive financial returns

The company

EWT was established in the Netherlands in 2004. With offices in Europe, North America and Asia the company has installed over 500 turbines worldwide. EWT offer a full service(,) with in-house design engineers, international and domestic office support and comprehensive service and maintenance programs.





DSP – DIRECTWIND Service Program

In order to maximise output and availability, EWT offer a comprehensive service and maintenance plan to ensure hassle-free operation.

The DIRECTWIND Service Program offers:

• Preventive maintenance
• Corrective maintenance
• Availability guarantee
• Power curve guarantee
• Extended product warranty
• Business Interruption compensation

The Mellors





“Our turbines have reduced our energy bill on the farm by up to 90%”  – Tom Mellor, Yorkshire Brewery owner



High energy yields even in areas with modest wind speeds

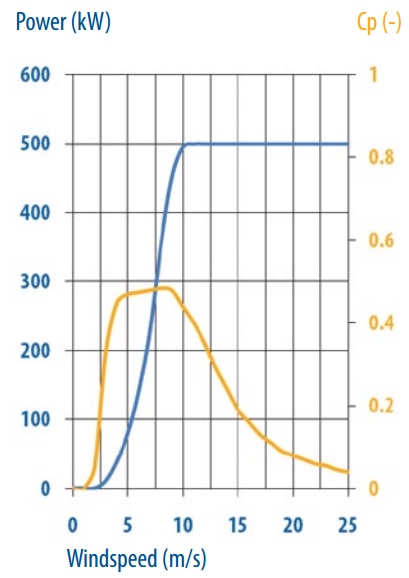

The EWT DW52/54 makes the most of the sub 500kW FiT bracket. The impressive power curve demonstrates the EWT’s ability to start generating from wind speeds as low as 3 m/s offering an extremely high energy yield and remarkable financial returns.

The AEP chart allows you to see what the annual energy production is likely to be based on the wind speed of your site.  If you aren’t sure what your wind speed is you can find out by requesting a complimentary site assessment through Earthmill.





Rotor diameter 52/54m
IEC Wind Class IIA & IIIA
Rotor speed Variable 12 – 26 rpm
Nominal power output 500 kW
Hub heights 35, 40, 50 and 75 m
Cut-in wind speed 2.5 m/s
Rated wind speed 10 m/s
Cut-out wind speed 25 m/s,
10 min. avg. Survival wind speed 59.5 m/s
Power output control Pitch controlled variable speed
Generator Synchronous multi-pole wound-rotor
Power converter IGBT-controlled

Options EWT wind turbines can be delivered with a number of options

  • Aviation light
  • Shadow flicker
  • Ice detection
  • Cold climate package
  • Black blades
  • Service elevator (75m)



Type Certificate
IEC 61400 wind class IIIA (DW54)
IEC 61400 wind class IIA (DW52)

Drive System
Generator Synchronous air-cooled EWT-design, multi-pole, wound-rotor
Power convertor Full-power, IGBT-controlled AC-DC-AC ‘back-to-back’ type.

Control System
Bachman PLC control system.
Possibility for remote access via TCP / IP internet and the DMS 2.0 * SCADA system.

Tower
Type Conical tubular steel, internal ascent
Hub heights 35, 40, 50 and 75m.

Safety Systems
Main brake action Individual rotor blade pitch (three independent brakes)
Fail-safe brake Individual rotor blad pitch by three independent battery-powered back-up
