Endurance E4660 85kW

Quietly maximising output and efficiency

Based on the classic E-series design, the new more efficient E-4660 85kW wind turbine demands a 35% higher energy yield than the E-3120. This has been made possible with the development of larger blades which increases the swept area of the turbine.

Endurance claim the improved efficiency is the equivalent of turning back the clock on the Feed-In-Tariff by 2 years.

The class IIA machine generates energy at a lower rotor speed of just 33RPM. This creates less noise, rendering the E-4660 as the quietest turbine in its class, and slashing the distance required as a buffer zone between the turbine and neighbouring properties to just 170m

Earthmill installed the first 85kW Endurance E4660 on the UK mainland in July 2015.







“Our turbines have reduced our energy bill on the farm by up to 90%”

The Mellors, Yorkshire brewery owners

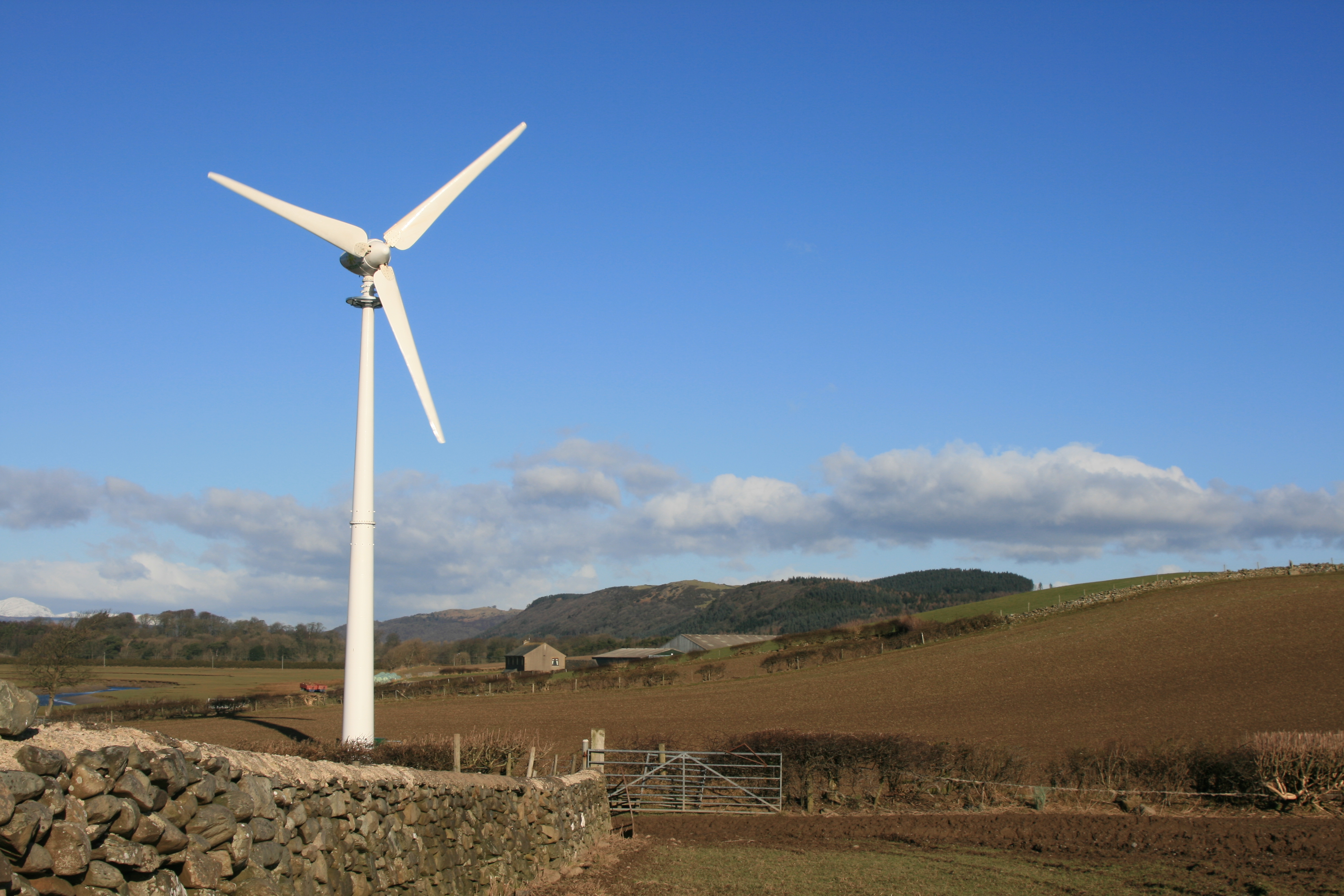

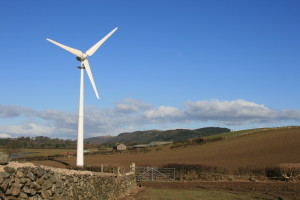

0514-0240514-024Grange-Over-Sands_Flookborough

Power Production

Power Production

The E-4660 Endurance turbine is classified as a 85kW wind turbine.  Often manufacturers rate wind turbines at their peak performance, however Endurance rate their turbines by their average performance. The E-4660 actually peaks at 98kW output and therefore must be registered to OFGEM as such.

The AEP table allows you to see what the annual energy production is likely to be based on the wind speed of your site.  If you aren’t sure what your wind speed is you can find out by requesting a complimentary site assessment through Earthmill.





“It’s great to be able to show people what the turbine’s doing and how
many houses needs it has produced. It was especially nice to be able
to keep an eye on it from the other side of the world when on holiday”

Jonathan Sharp, Yorkshire farmer







“It was fantastic. I just wish everything in life was as simple as that.  All
the
work, including the planning application, was done by Earthmill”

Guy Benson, East Ridings farmer



Power Curve

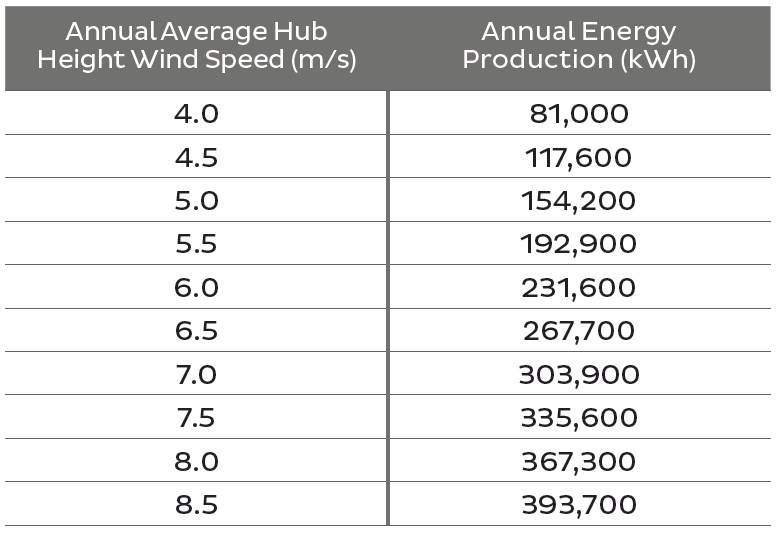

Annual Energy Production (AEP)





 Annual Energy Production Chart



Specification

E Series Specs E4660 85kW

Turbine

Configuration Three blade, horizontal axis, downwind
Rated Power 85kW at 15 m/s
OFGEM TIC/DNC 98kW/97kW
Application Direct Grid Tie
Rotor Speed 33 RPM
IEC 61400-1 Turbine Class: IIA
Maximum Average Wind Speed 8.5m/s
Survival Wind Speed 59.5 m/s or 133mph
Cutout Wind Speed 25m/s
Overall Weight 6200kg / 13700lbs

Rotor

Rotor Diameter 23.5m
Swept Area 434m2
Blade Material Fiberglass Composite
Power Regulation Stall control

Generator

Generator Type Asynchronous, Induction
Configuration 3-phase, 400 VAC, 50 Hz



Brake & Safety Systems

Main Brake System Rapid Fail-Safe dual mechanical brakes
Secondary System Spring-loaded pitch mechanism for over-speed regulation
Automatic Shutdown triggered by High wind speed, grid failure, over-speed, all other fault conditions

Controls

Control System User Interface Programmable Logic Controller (PLC) and ERIC™ Endurance Remote Interface Centre

Towers

Available Hub Heights 24.8m and 36.6m
Tower Type Free Standing Monopole, Safe climbing system

Warranty

Standard – 5 year parts and labour
